The integration of sophistication and technical evolution. Introducing our innovative Z series.

Luxman’s new generation Z series integrated amplifiers. The L-507Z is the debut model heralding our new generation of amplifier products. Featuring our newly developed LIFES amplification feedback engine, we look towards the future of Luxman. This amplifier has realized a dramatic development in musicality that goes far beyond its class. L-507Z combines advanced technology and sophisticated functionality. Our new, innovative Z series integrated amplifier generation begins with this superb model.

2 x110Watts / 8Ω, 2 x 210 Watts / 4Ω, alimentation améliorée et filtrage primaire doublé à 80.000μF et en double mono, 4 entrées RCA, 2 entrées XLR, 1 entrée phono MM/MC, 1 entrée ampli et 1 sortie préampli, 1 entrée et 1 sortie trigger12V mise sous tension, 1 entrée et 1 sortie signal télécommande, deux sorties casque, télécommande, moteur de contre- réaction Life version 1.0 et nouveau LECUA1000

440L×178H×454P (mm), 25,4kg

Attention: quantités limitées. Avant de nous passer commande, merci de nous consulter pour en connaître la disponibilité.

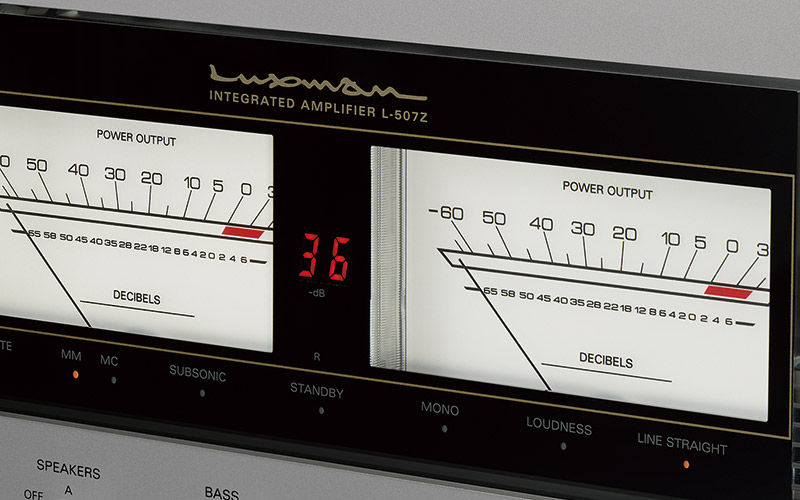

LUXMAN L-507Z

9 490,00 €

Nous contacter

Rated output   110W+110W（8Ω） 220W+220W（4Ω）
Input sensitivity/
input impedance   PHONO（MM）: 2.5mV / 47kΩ
PHONO（MC ）： 0.3mV / 100Ω
LINE: 180mV / 47kΩ
BAL.LINE: 180mV / 79kΩ
MAIN IN: 1.05V / 47kΩ

Output voltage   PRE OUT: 1V

Frequency response   PHONO: 20Hz to 20kHz (±0.5dB)

LINE: 20Hz to 100kHz (within -3dB)

Total harmonic distortion   0.007% or less (8Ω, 1kHz)
0.03% or less (8Ω, 20Hz to 20kHz)

S/N ratio (IHF-A)
PHONO (MM): 91dB or more
PHONO (MC): 75dB or more
LINE: 105dB or more

Volume adjustment   New LECUA1000
Amplification feedback circuit   LIFES 1.0

Output configuration   Bipolar 3-parallel push-pull

Damping factor   300
Max. amount of tone control   BASS: ±8dB at 100Hz
TREBLE: ±8dB at 10kHz
Power supply   230V~(50Hz) / 115V~(60Hz)
Power consumption   350W
886W (under no signal), 0.4W (at standby)
External dimensions   440(W) x 178(H) x 454(D) mm
front side knob of 20mm and rear side terminal
of 27mm included in depth
Net weight   25.4kg (main unit)
Accessories   Remote control (RA-17A)
Power cable
Speaker terminal
Supported Y-lug terminal
dimension
Width of part a: 15mm or less
Width of part b: 8mm or more
* Connection may not be performed
depending on the shape of the
Y-lug terminal.
